WANT THE TOUGHEST WEAR STEELS?
We’ve got the largest range of the hardest & toughest G450 & G500 Abrasion Resistant steels & Chromium Carbide overlay plate. With our heavy engineering expertise & steel processing capabilities we can measure it, draw it, cut it, drill it, mill it, press it & weld it to suit your needs!
BENEFITS OF USING OUR STEEL PLATE & PROFILES;
- Highest quality, quench & tempered, through hardened steels
- Wear steels & profiles available from 4mm to 90mm thick
- CNC plasma & gas profile cutting
- 500 ton CNC press brake
- CNC machining & line boring
- Welding & fabrication services
- Free onsite measure ups & advice
- Large range in stock for nationwide delivery
G350 Wear Steel
G350 is a high-strength structural steel commonly used in the engineering and construction industries for structural and general fabrication. This steel easy to cut, weld, form, drill, machine and tap. This steel has no wear properties but ideal for components that require strength rather than wear resistance.
Get a quoteWe stock G350 Medium Tensile Steel in thicknesses from 5mm to 60mm.
Full Sheet Sizes Available:
- 6000 x 2400mm
- 2400 x 1500mm
- 2400 x 1200mm
- 9000 x 2400mm
Can be profile cut, pressed, milled, drilled & welded to suit your needs.
Send us your templates or drawing files. Onsite measure ups are available.
- General fabrication
- Structural buildings
- Architectural structures
- Agricultural attachments
- Storage tanks
- Small buckets
- Minimum Yield Strength: 350 MPa
- Minimum Tensile Strength: 450 MPa
- Hardness: 140–180 HBW
G400 Wear Steel
G400 is a wear plate designed for high wear and impact applications. This steel provides up to 4 times the wear life and strength of mild steel. It can be cut, welded, formed, drilled, machined and tapped with specialised tooling and processes.
Get a quoteWe stock G400 Abrasion Plate in thicknesses from 40mm to 90mm.
Full Sheet Sizes Available:
- 6000 x 2500mm
Can be profile cut, milled, drilled & welded to suit your needs.
Threaded studs or machined holes can be fitted for bolt-on plates.
Send us your templates or drawing files. Onsite measure ups are available.
G400 is commonly used in:
- Bucket and blade liners
- Weld-in cutting edges
- Truck deck liners
- Crusher plates
- Ripper shanks
- Conveyors
- Feeders
- Wear strips
- Yield Strength: 1160 MPa
- Tensile Strength: 1300 MPa
- Hardness: 370–430 HBW
- Impact Toughness: 50J (-40°C)
G450 Wear Steel
G450 is a wear plate designed for high wear and impact applications. This steel provides up to 6 times the wear life and strength of mild steel. It can be cut, welded, formed, drilled, machined and tapped with specialised tooling and processes.
Get a quoteWe stock G450 Abrasion Plate in thicknesses from 5mm to 60mm.
Full Sheet Sizes Available:
- 6000 x 2500mm
- 8000 x 2500mm
Can be profile cut, pressed, milled, drilled & welded to suit your needs.
Threaded studs or machined holes can be fitted for bolt-on plates.
Send us your templates or drawing files. Onsite measure ups are available.
G450 is commonly used in:
- Bucket & blade liners
- Weld-in cutting edges
- Truck deck liners
- Crusher plates
- Ripper shanks
- Conveyors
- Feeders
- Wear strips
- Yield Strength: 1250 MPa
- Tensile Strength: 1400 MPa
- Hardness: 420–480 HBW
- Impact Toughness: 27 J
We stock G500 Abrasion Plate in thicknesses from 10mm to 50mm.
Full Sheet Sizes Available:
- 6000 x 2500mm
Can be profile cut, pressed, milled, drilled & welded to suit your needs.
Threaded studs or machined holes can be fitted for bolt-on plates.
Send us your templates or drawing files. Onsite measure ups are available.
G500 is commonly used in:
- Bolt-on cutting edges
- Gears/Sprockets
- Crusher wear plates
- Conveyor liners
- Hammers
- Screen plates
- Wear strips
- Yield Strength: 1500 MPa
- Tensile Strength: 1700 MPa
- Hardness: 470–530 HBW
- Impact Toughness: 27 J
G780 Wear Steel
G780 is an extra high-strength structural steel. This steel is highly resistant to weld cracking, has good flexibility for high stress and impact applications, and is easy to cut, weld, form, drill, machine and tap.
Get a quoteWe stock G780 Abrasion Plate in thicknesses from 12mm to 140mm.
Full Sheet Sizes Available:
- 6000 x 2500mm
Can be profile cut, milled, drilled & welded to suit your needs.
Send us your templates or drawing files. Onsite measure ups are available.
- Excavator Bucket Edges
- Transport Trailer Chassis
- Bridge & Building Structures
- Lifting & Hoisting Equipment
- Ripper Shanks
- Machinery Attachments
- Minimum Yield Strength: 700 MPa
- Tensile Strength: 780–930 MPa
- Hardness: 220–260 HBW
- Impact Toughness: 27 J (-40°C)
- Thickness Range: 12–140 mm

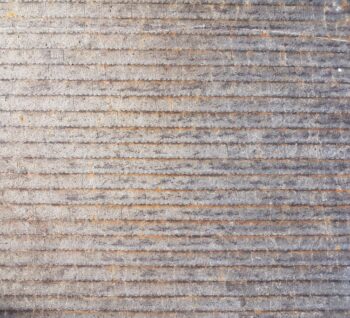

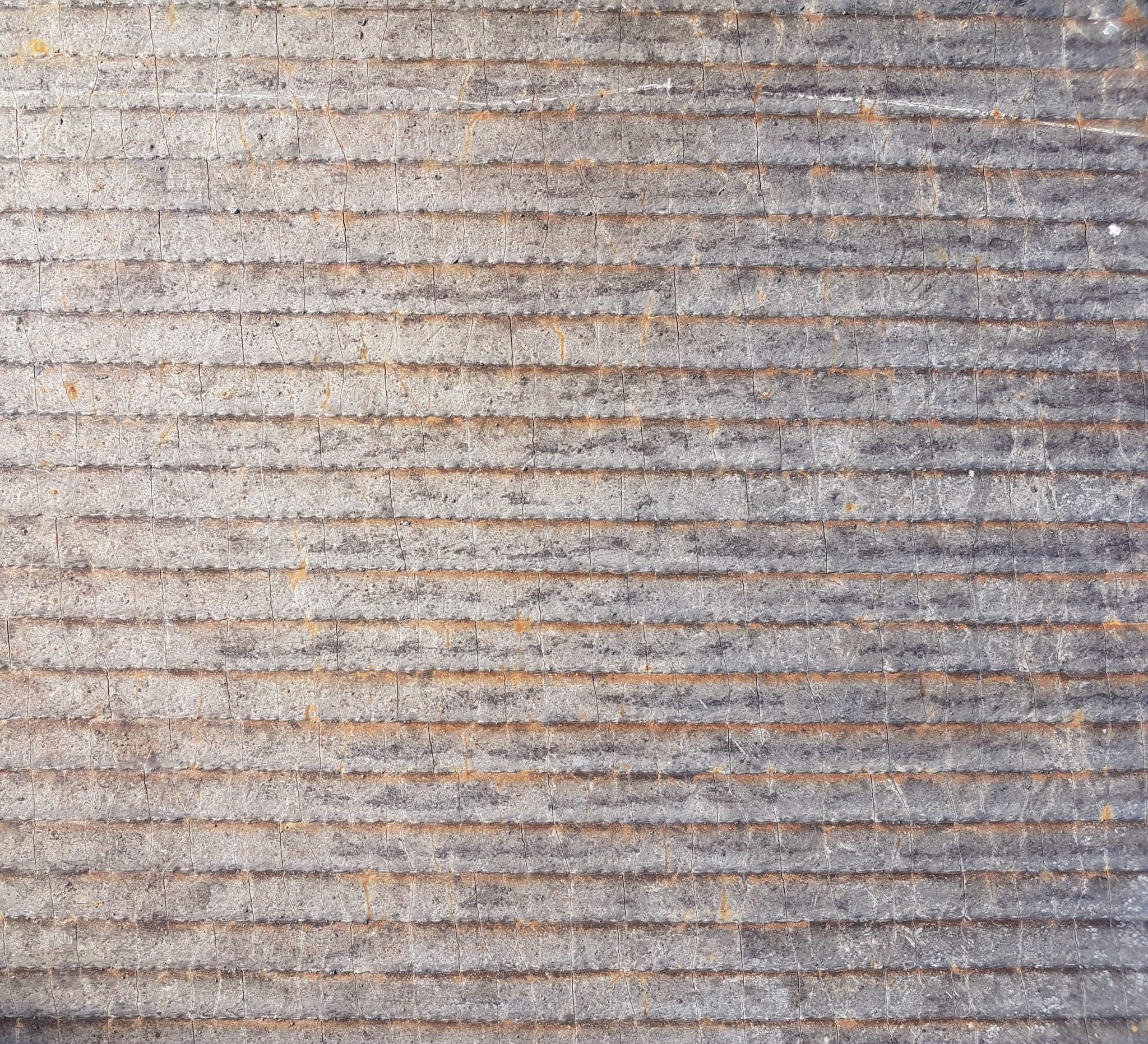

Chromium Carbide Plate
Chromium Carbide Plate features a hard chromium carbide matrix that is welded onto a mild steel backing plate. The large amount of hard chromium carbides allows this plate to thrive in extreme abrasion and impact applications, providing the longest possible wear protection.
Get a quoteWe stock Chromium Carbide Plate in thicknesses from 10mm to 24mm.
Full Sheet Sizes Available:
- 3500 x 2100mm
Can be profile cut, pressed, & welded to suit your needs.
Threaded studs or countersunk inserts can be fitted for bolt-on plates.
Send us your templates or drawing files. Onsite measure ups are available.
- Bucket Liners
- Truck Deck Liners
- Chute Liners
- Dozer Blade Liners
- Bin & hopper liners
- Crusher Plates
- Recycling Plants
- Wear Strips
Chromium Carbide Plate offers outstanding wear performance
Key properties include:
- Up to 30 times longer wear life than mild steel.
- Up to 6 times longer wear life than G450 wear steel.
- This plate can withstand a moderate level of continuous impact as long as it is fully supported underneath.
- Heat resistant up to 600°C.
- The overlay surface of this plate consists of a series of weld beads with numerous hairline cracks. These cracks are a natural stress relief effect and are beneficial to the material. These cracks do not affect the performance of the plate.

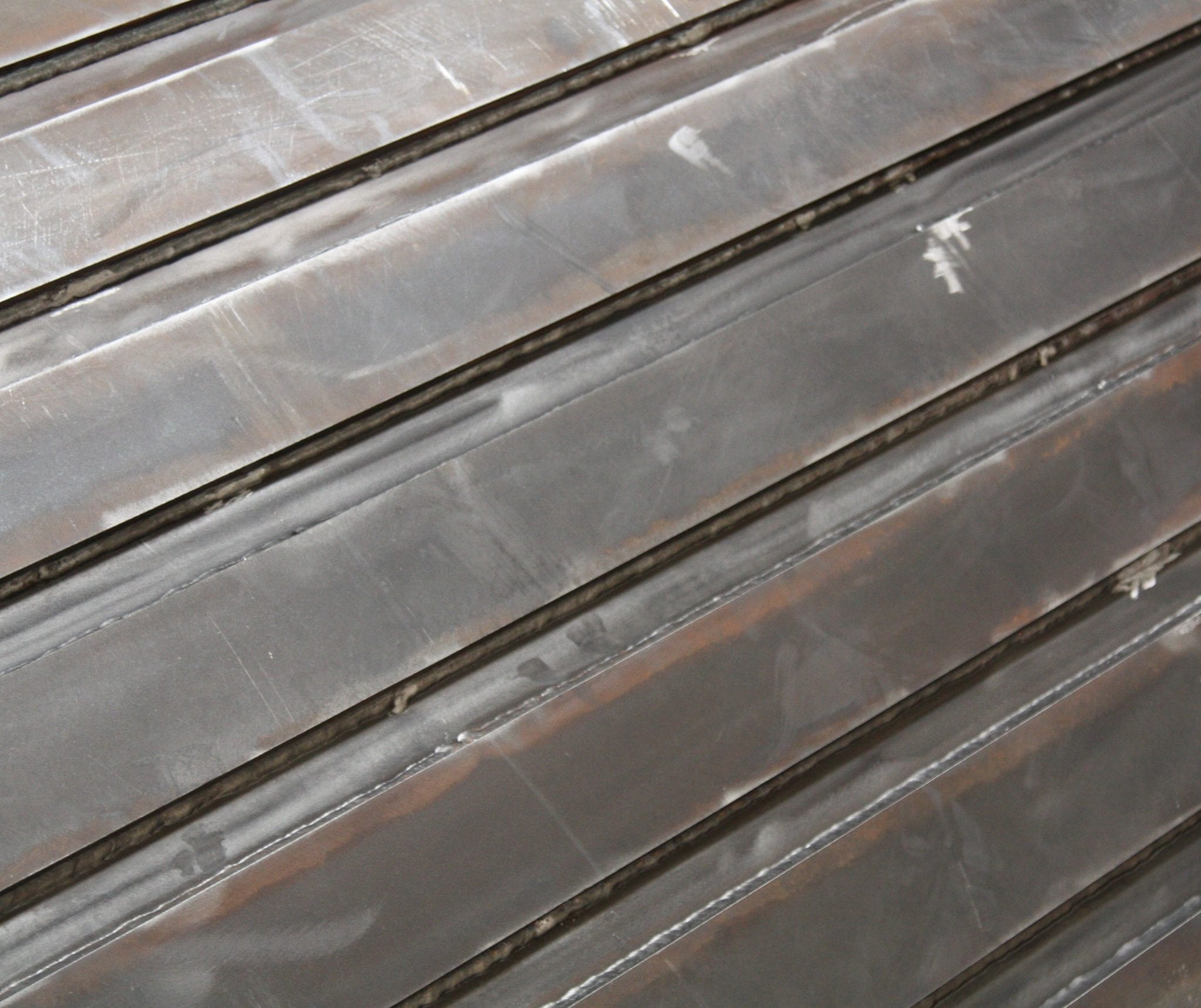

Wear Strip G450
G450 Wear Strips are designed to protect high-wear areas on excavator buckets, loader buckets and dozer blades. Manufactured from G450 abrasion resistant steel, they help reduce wear and lower maintenance costs.
Get a quoteAvailable in thicknesses from 6mm to 50mm.
Common stock sizes include:
- 2500 x 80 x 10mm
- 2500 x 80 x 12mm
- 2500 x 100 x 16mm
- 2500 x 125 x 16mm
- 2500 x 125 x 20mm
Wear strips can be profile cut to virtually any length or width to suit your application.
Wear Strips can be used inside and outside of excavator and loader buckets, as well as on dozer blades, to provide additional wear protection and extend component life.

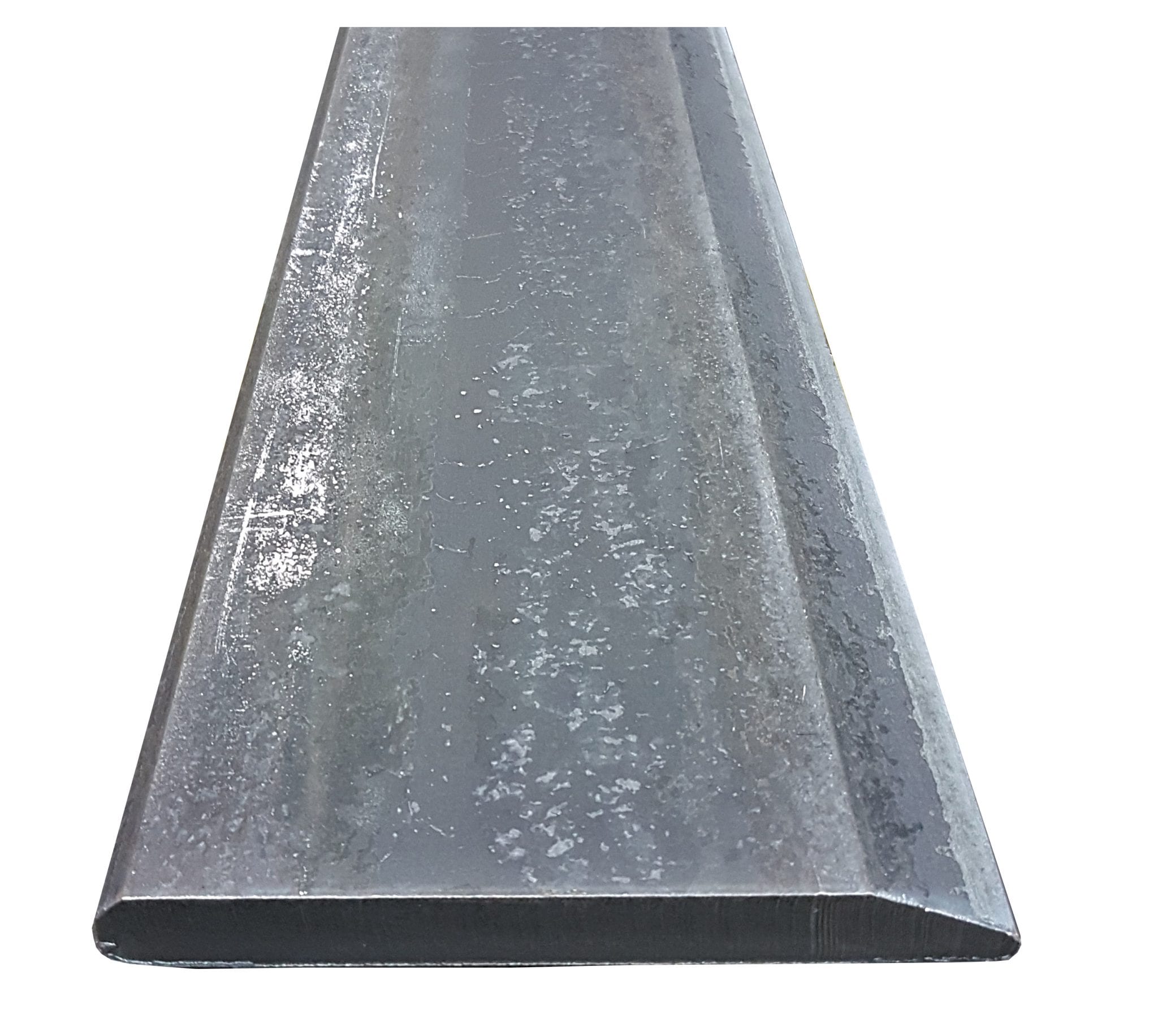

Cutting Edge 400HB Single Bevel Flat
Weld-in cutting edge profile with a bevel along the front for good penetration and a weld bevel along the back edge. Made from 400/450HB abrasion-resistant steel for maximum strength and wear life. Can be drilled to suit bolt on cutting edges.
A range of standard sizes are available, including widths from 110mm to 400mm and thicknesses from 12mm to 50mm.
Available in 3000mm and 6200mm lengths, or custom cut to any size.
3000mm handy lengths are available from our Auckland branch.

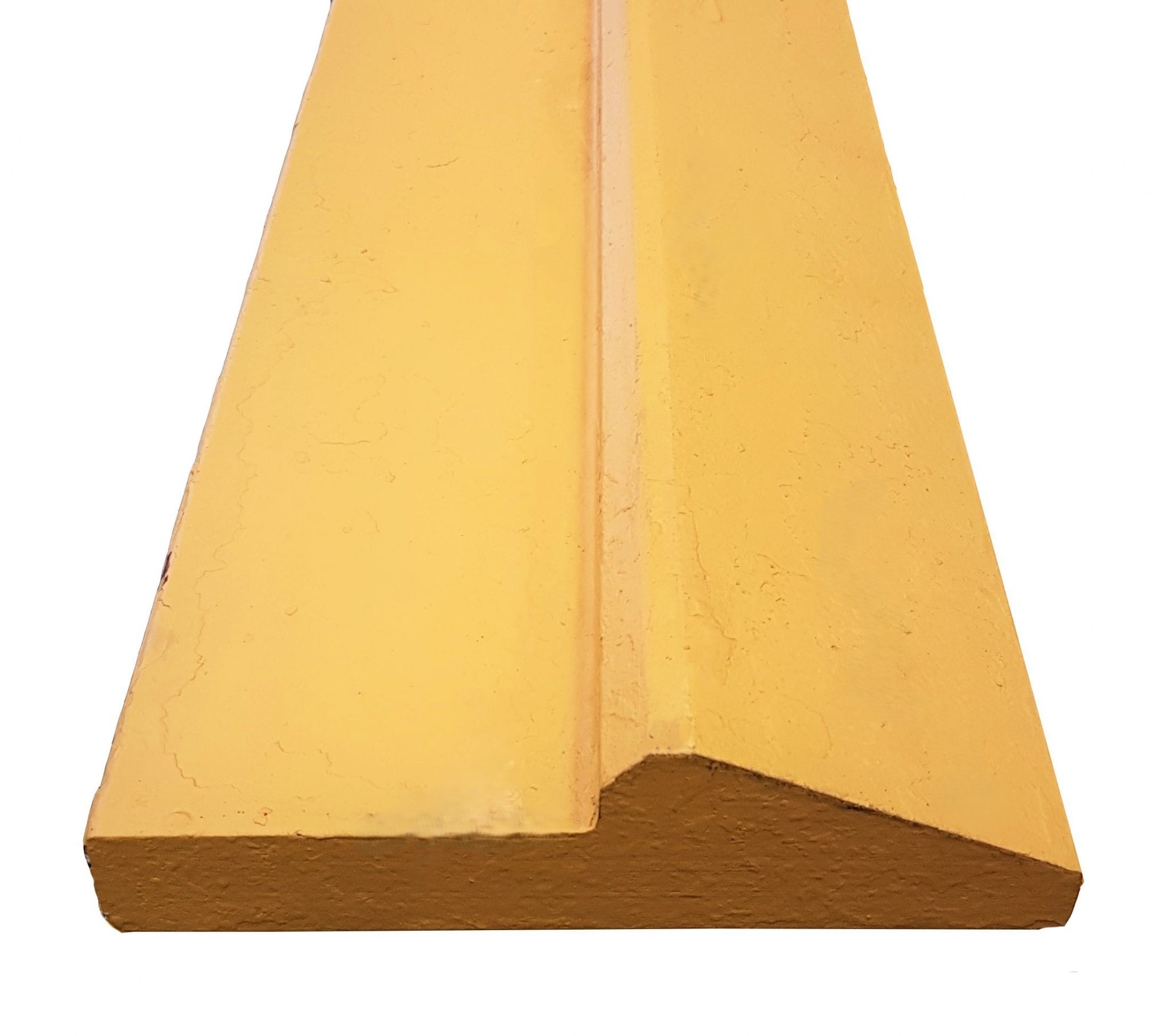

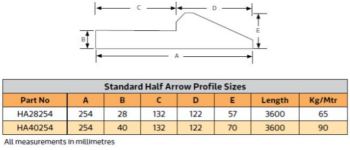

Cutting Edge 450HB Half Arrow
Weld-in or bolt-on cutting edge profile for loader and excavator cutting edges, providing more wear material along the front edge than the DBF profile. Made from 450HB abrasion-resistant steel for maximum strength and wear life. Can also be used on bucket sides for wear protection or to increase capacity.
Get a quoteAvailable in 3000mm lengths or cut to any size. Can be drilled with plow bolt holes to become bolt on.

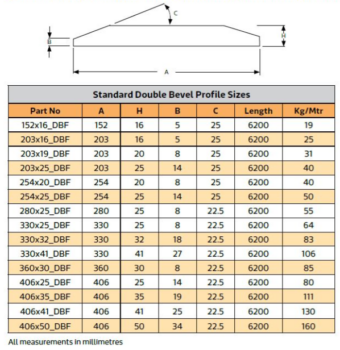

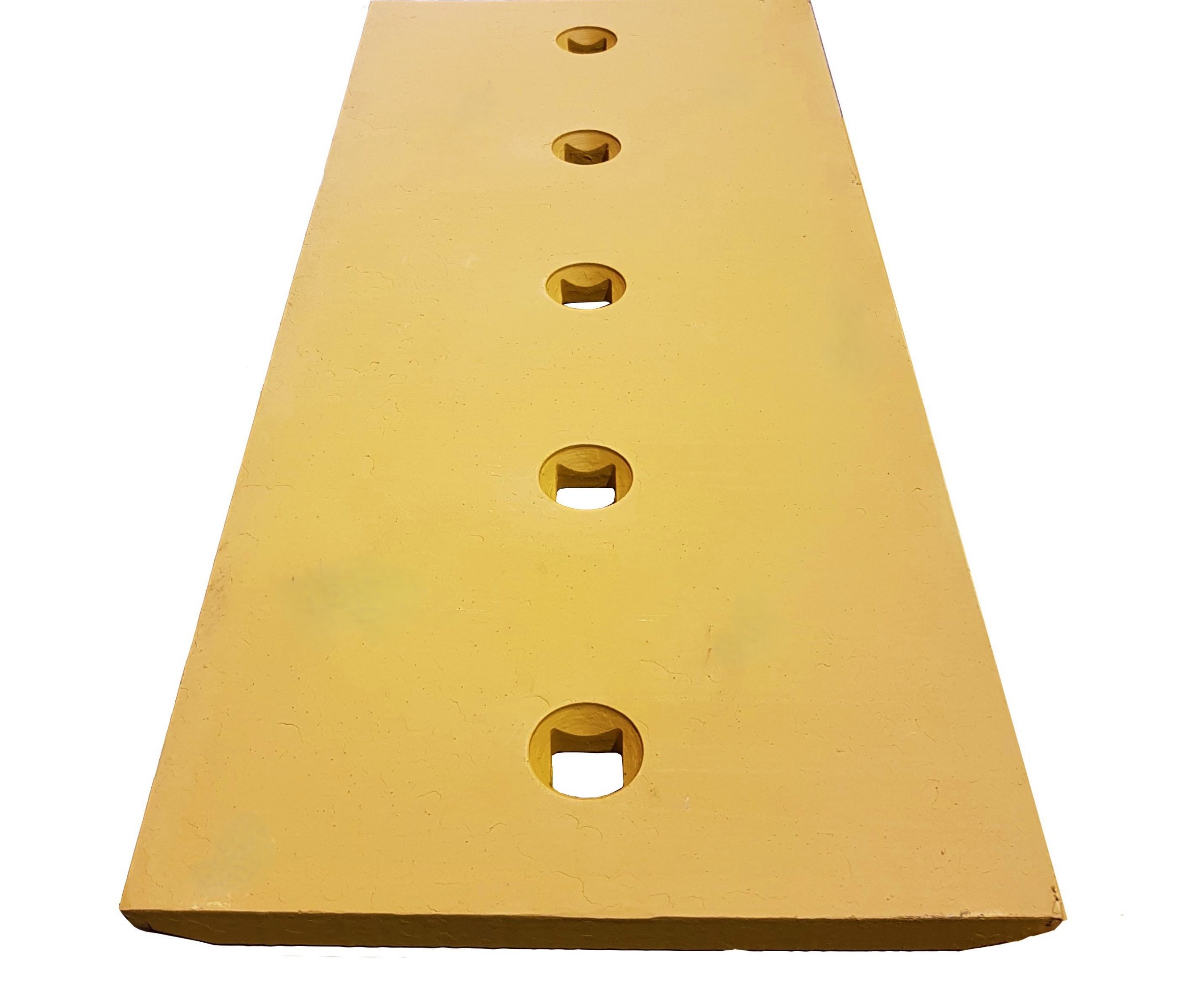

Cutting Edge 500HB Double Bevel Flat
Bolt-on reversible cutting edge profile with a bevel on both sides. Used for excavator, loader, dozer, scraper and tractor bucket edges. Made from 500HB abrasion-resistant steel for the longest possible wear life. Can be cut & drilled to suit all makes & models of machines.
Get a quoteA range of standard sizes are available, including widths from 152mm to 406mm and thicknesses from 16mm to 50mm.
Available in 6200mm lengths, or custom cut to any size & drilled to suit all makes & models of machines.
Cut & drilled: 3 working days before dispatch.
Cut only: Next working day dispatch.

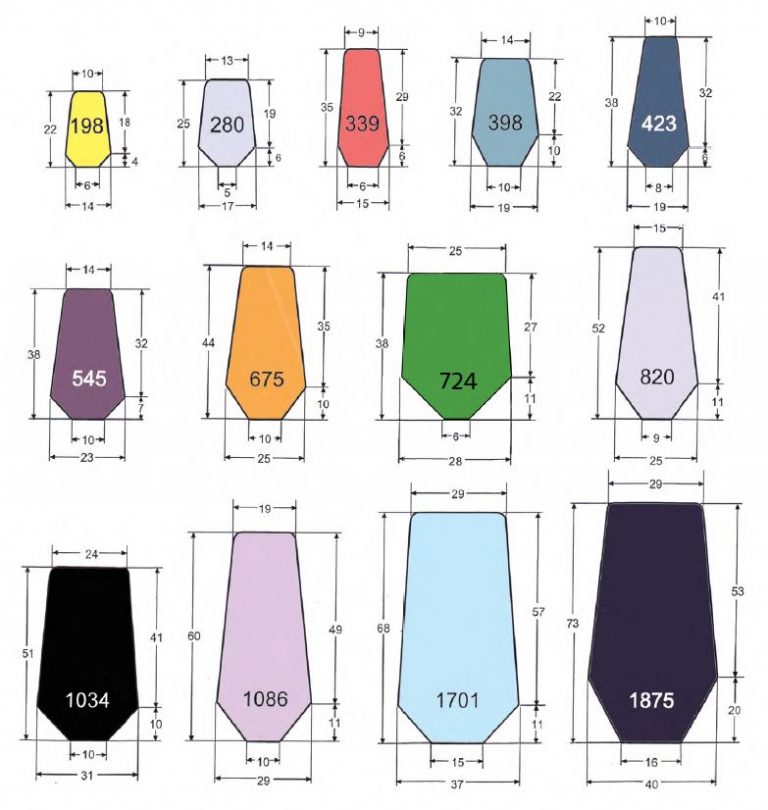

Grouser Relug Bar
Used for welding onto excavator & dozer track shoes to increase traction.
Available in 3000mm long lengths or cut to any size. A great option for giving steep slope forestry machines more grip.
